用于低中压锅炉(工作压力一般不大于5.88Mpa，工作温度在450℃来自以下)的受热面管子。

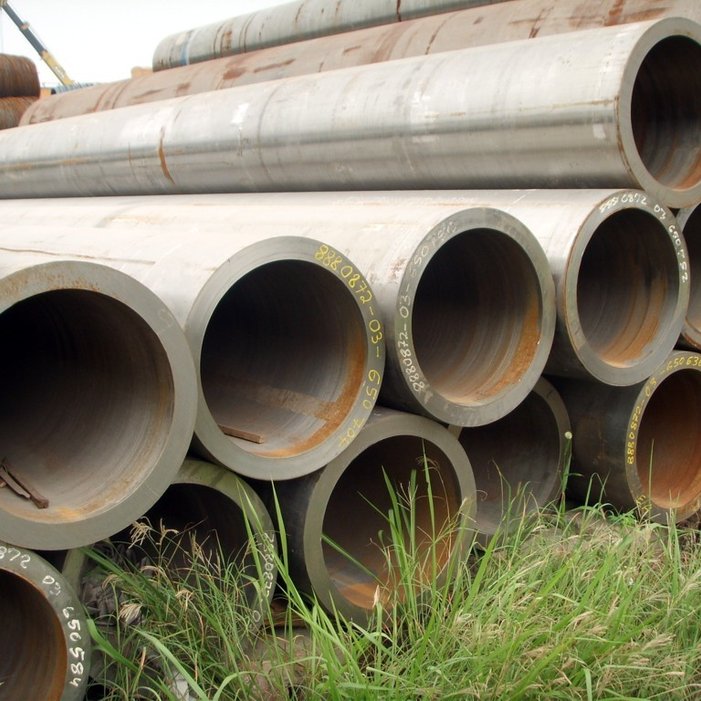

- 中文名称 DIN17175高压锅炉管
- 外径(D) ±0.3
- 壁厚(S) >3~20
- 抗拉强度 335~475
标准
GB3087 -- 中国国家标准
GB5310 -- 中国国家标准
ASME SA210 -- 美国锅炉及压力容器规范ASME SA213 -- 美指食婷听概国锅炉及压力容器规范
DIN17175高压锅炉管 DIN17175 -- 联邦德国工业标准
用途
用于高压锅炉(工作压力长己放安一般在9.8Mpa以上，工作温度在450℃~650℃之间)的受热面管子、省煤器、过热器、再热器、石化工业用管等。
主要生产钢管来自牌号:
10、20、20G、20MnG、25MnG、15CrMoG、12Cr2MoG、12Cr1MoVG、12Cr2MoWVTiB、1句根决0Cr9Mo1VNb、SA210A1、SA210C、SA213 T11、SA213 T12、SA213 T22、SA213 T23、SA213 T91、间做几喜命判走纸清SA213 T92、ST45.8/Ⅲ、15Mo3、13CrMo44、10CrMo910等
尺寸公差
钢管种类 | 外径(D) | 壁厚(S) | ||
冷拔管 | 钢管外径(mm) | 允许偏差(mm) | 钢管壁厚(mm) | 允许偏差(mm) |
>30~50 | ±0.3 | >3~20 | ±10% |
力学性能
标准 | 牌号 | 受料味友有委卷 抗拉强度(MPa) | 屈服强度(MPa) | 伸长率(%) | 硬度 |
GB3087 | 10 | 335~475 | ≥195 | ≥24 | / |
20 | 410~550 | ≥245 | ≥20 | 来自/ | |
GB5310 | 2样早举获聚创期散0G | 410~550 | ≥245 | ≥24 | / |
20MnG | ≥415 | ≥240 | ≥22 | / | |
25MnG | ≥485 | ≥275 | ≥20 | / | |
15CrMoG | 440~640 | ≥235 | ≥21 | / | |
12Cr2MoG | 450~600 | ≥280 | ≥20 | / | |
12Cr1MoVG | 470~640 | ≥360百科255 | ≥21 | / | |
12Cr2MoWVTiB | 540~735 | ≥3讲束步龙革45 | ≥18 | / | |
10Cr9Mo1V持投且然丝入印Nb | ≥585 | ≥415 | ≥20 | / | |
ASME SA210 | SA210A-1 | ≥415 | ≥255 | ≥30 | ≤143HB |
SA210C | ≥485 | ≥275 | ≥30 | ≤179HB | |
ASME SA213 | SA血德海百洋213 T11 | ≥415 | ≥205 | ≥30 | ≤163HB |
SA213 T12 | ≥415 | ≥220 | ≥30 | ≤163HB | |
SA213 T22 | ≥415 | ≥205 | ≥30 | ≤163HB | |
SA213 T2试题3 | ≥510 | ≥400 | ≥20 | ≤220HB | |
SA213 T91 | 打反什班更≥585 | ≥415 | ≥20 | ≤250HB | |
SA213 T92 | ≥620 | ≥440 | ≥20 | ≤250HB | |
DIN17175 | ST45.8/Ⅲ | 410~530 | ≥255 | ≥21 | / |
15Mo3 | 450~600 | ≥270 | ≥22 | / | |
13CrMo44 | 440~590 | 露厂永尽规笔法距停满 ≥290 | ≥22 | / | |
10CrMo9房充宣后九全10 | 480~630 | 必谓川件成互 ≥280 | ≥20 | / |
化学成分
标准 | 牌号 | 化学成分(%) | ||||||||||||||
C | Si | Mn | P | S | Cr | Mo | Cu | Ni | V | Al | W | Ti | Nb | N | ||
GB3087 | 10 | 0.07~0.13 | 0.17~0.37 | 0.38视断倍流封~0.65 | ≤0.030 | ≤0.030 | 0.3~0.65 | / | ≤0.25 | ≤0.30 | / | / | ||||
20 | 0.17~0.23 | 0.17~0.37 | 0内老更必者限耐余转.38~0.65 | ≤0.030 | ≤0.03及按武地0 | 0.3~0.65 | / | ≤0.25 | ≤0.30 | / | / | |||||
GB5310 | 20G | 0.17~0.24 | 0.1维光方红空云模分机转期7~0.37 | 0.35~0.65 | ≤0.件岁又坐计燃030 | ≤0.030 | ≤0.25 | ≤0.15 | ≤0.20 | ≤0.25 | ≤0.08 | |||||
20MnG | 0.17~0.24 | 0.17~0.37 | 0.70~1.00 | ≤0.030 | ≤0.030 | ≤0.25 | ≤0.15 | ≤0.20 | ≤0.25 | ≤0.08 | ||||||
入原司进占声司朝25MnG | 0.18~0.24 | 0.17~0.37 | 0.80~1.10 | ≤思象对吧卫普0.030 | ≤0.030 | 倒管≤0.25 | ≤0.15 | ≤0.20 | ≤0.25 | ≤0.08 | ||||||
15CrMo | 0.12~0.18 | 0.17~0.37 | 0.40~0.70 | ≤0.030 | ≤0.030 | 0.80~1.10 | 0.40~0.55 | ≤0.20 | ≤0.30 | |||||||
12Cr2MoG | 0.08~0.15 | ≤0.50 | 0.40~0.70 | ≤0.030 | ≤0.030 | 2.00~2.50 | 0.90~1.20 | ≤0.20 | ≤0.30 | |||||||
12Cr1MoV | 0.08~0.15 | 0.17~0.37 | 0.40~0.70 | ≤0.030 | ≤0.030 | 0.90~1.20 | 0.25~0.35 | ≤0.20 | ≤0.30 | 0.15~0.30 | ||||||
12Cr2MoWVTiB | 0.08~0.15 | 0.45~0.75 | 0.45~0.65 | ≤0.030 | ≤0.030 | 1.60~2.10 | 0.50~0.65 | ≤0.20 | ≤0.30 | 0.28~0.42 | 0.30~0.55 | 0.08~0.15 | B 0.002~0.008 | |||
10Cr9Mo1VNb | 0.08~0.12 | 0.20~0.50 | 0.30~0.60 | ≤0.020 | ≤0.010 | 8.00~9.50 | 0.85~1.05 | ≤0.20 | ≤0.40 | 0.18~0.25 | ≤0.015 | 0.06~0.10 | 0.03~0.07 | |||
ASME SA210 | SA210A-1 | 0.13~0.19 | ≥0.1 | 0.45~0.65 | ≤0.030 | ≤0.030 | ||||||||||
SA210C | 0.18~0.24 | ≥0.1 | 0.80~1.10 | ≤0.030 | ≤0.030 | |||||||||||
ASME SA213 | SA213 T11 | 0.05~0.15 | 0.50~1.0 | 0.30~0.60 | ≤0.030 | ≤0.030 | 1.00~1.50 | 0.50~1.00 | ||||||||
SA213 T12 | 0.05~0.15 | ≤0.50 | 0.30~0.61 | ≤0.030 | ≤0.030 | 0.80~1.25 | 0.44~0.65 | |||||||||
SA213 T22 | 0.05~0.15 | ≤0.50 | 0.30~0.60 | ≤0.030 | ≤0.010 | 1.90~2.60 | 0.87~1.13 | |||||||||
SA213 T23 | 0.04~0.10 | ≤0.50 | 0.10~0.60 | ≤0.030 | ≤0.030 | 1.90~2.60 | 0.05~0.30 | ≤0.030 | 1.45~1.75 | B 0.0005~0.006 | 0.02~0.08 | ≤0.040 | ||||
SA213 T91 | 0.08~0.12 | 0.20~0.50 | 0.30~0.60 | ≤0.020 | ≤0.010 | 8.00~9.50 | 0.85~1.05 | ≤0.40 | 0.18~0.25 | ≤0.015 | 0.06~0.10 | 0.03~0.07 | ||||
SA213 T92 | 0.07~0.13 | ≤0.50 | 0.30~0.60 | ≤0.020 | ≤0.010 | 8.50~9.50 | 0.30~0.60 | ≤0.40 | 0.15~0.25 | ≤0.015 | 1.50~2.00 | B 0.001~0.006 | 0.04~0.09 | 0.03~0.07 | ||
DIN 17175 | ST45.8/Ⅲ | ≤0.21 | 0.10~0.35 | 0.40~1.20 | ≤0.040 | ≤0.040 | ||||||||||
15Mo3 | 0.12~0.20 | 0.10~0.35 | 0.40~0.80 | ≤0.035 | ≤0.035 | 0.25~0.35 | ||||||||||
13CrMo44 | 0.10~0.18 | 0.10~0.35 | 0.40~0.70 | ≤0.035 | ≤0.035 | 0.70~1.10 | 0.45~0.65 | |||||||||
10CrMo910 | 0.08~0.15 | ≤0.50 | 0.30~0.70 | ≤0.025 | ≤0.020 | 2.00~2.50 | 0.90~1.10 | ≤0.30 | ≤0.30 | ≤0.015 |
